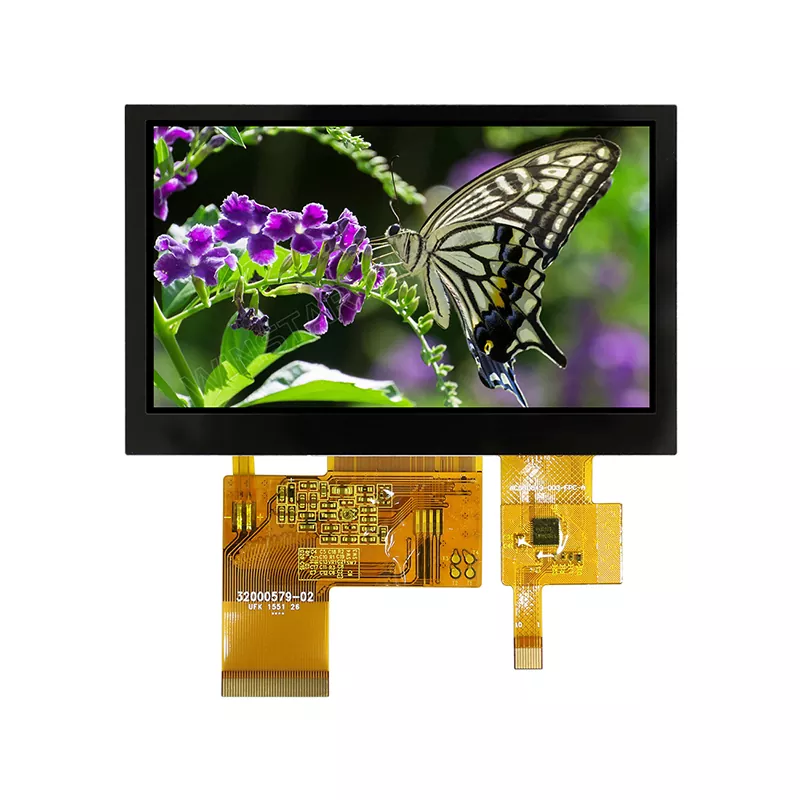

4.3 orlach 480x272 Modúl TFT IPS le CTP

Is déantúsóir gairmiúil modúl TFT é Victronix sa tSín. Tá muid sa réimse seo ar feadh níos mó ná 18 mbliana. Agus tá roinnt samhlacha forbartha againn go dtí seo. Is é an modúl Victronix 4.3 orlach 480x272 IPS TFT le CTP ná modúl LCD TFT ardfheidhmíochta ardfheidhmíochta ardfheidhmíochta atá deartha chun feidhmchláir leabaithe agus tionsclaíocha a éileamh. Agus taispeántas geal á chomhcheangal le feidhmiúlacht il-tadhaill sofhreagrach, seachadann an modúl seo soiléireacht amhairc eisceachtúil agus idirghníomhaíocht úsáideora i bhfachtóir foirm dhlúth.

Mionsamhail:VXT430MPSA-01CA

Seol Fiosrúchán 1022 Íoslódáil PDF

Cur síos ar an Táirge

What are the competitive advantages of the Victronix 4.3 inch 480x272 IPS TFT Module with CTP in the competitive situation of TFT Module manufacturers? At first, its wide viewing angle of 80° in all directions and a high contrast ratio of 1000:1 make it more suitable for harsh industrial. Secondly, it integrates an LED backlight unit with a typical brightness of 400 cd/m² and a rated life of 50,000 hours (at 50% initial brightness). Besides, not only does it feature a parallel 24-bit RGB interface (ST7282A controller) for seamless integration with common processors and FPGAs. DE, SYNC, and SYNC+DE modes are supported, but it integrates a 5-point multi-touch panel (CTP) with high precision (±1.5mm center, ±2.5mm edge) and robust 6H surface hardness. Controlled via I²C interface (ST1633i). In addition, it operates reliably in a wide temperature range (-20°C to +70°C) and withstands storage from -30°C to +80°C.

This Victronix 4.3inch TFT Module is suitable for Industrial HMI, portable instrumentation, medical devices, embedded control systems, kiosks, and any application requiring a reliable, bright display with intuitive touch interaction.

General Specifications LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Grayscale inversion direction	-	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	4.3	inch
Active Area(W×H)	95.04x53.86	mm
Number of Dots	480x272	dots
Controller	ST7282A	-
Power Supply Voltage	3.3	V

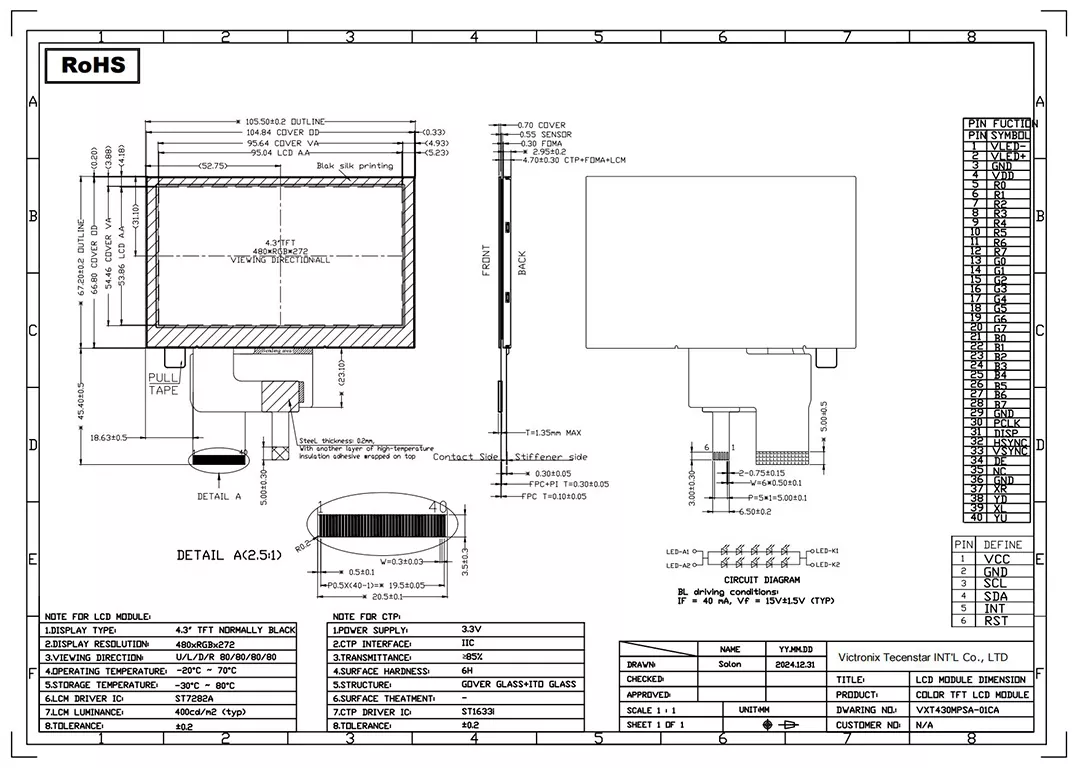

Outline Dimensions	105.50x67.20x4.70	mm
Backlight	5X2-LEDs (white)	pcs
Weight	---	g
Interface	RGB	-

CTP Parameter

Item	Contents	Unit	Note
Cover View Area	95.64(H)X54.46(V)
CTP Resolution	480*272	dots
Interface Mode	IIC	-
Touch Mode	5 Human fingers multi-touch	-
Surfacehardness	6H	-
Transparency	>=85%	-
Accuracy	Centre +/-1.5,Edge +/-2.5mm	mm
CTP Controller	ST1633i	-
Power Supply Voltage	3.3	V
